Rear Wall Panel FAQs
Fitment, audio upgrades, installation and colours for our 70 Series LandCruiser Rear Wall Panels — with or without subwoofer and battery.
It provides a clean, contoured finish to the rear wall of your vehicle while retaining essential factory storage. It can also be configured to house a subwoofer and/or lithium battery in the upgraded versions.
Yes, it will fit over the top of 'Stage 1' sound deadener (2mm peel-and-stick foil layer), but it will not fit with full 'Stage 2' sound deadening such as mass noise liner. Our panel itself acts as an effective sound deadening solution and is more effective than Stage 2 liner.
Yes. It installs using four factory holes with no damage to the vehicle. A nutsert tool is required to install four 6mm nutserts. Full installation hardware and instructions are included.
All versions are made from exterior-grade marine bonded plywood, with the lower section upholstered in carpet for durability and the upper section in vinyl to match the interior.
Yes, we offer DeluxeTrim Vinyl in Black or Grey to match your seats and trims.
Yes, we can customise the cutout to suit this bracket for an additional cost.
- Contoured wall panel (half carpet / half vinyl)
- Retains factory bottle jack and tool bag
- Installation hardware and instructions
No audio components, subwoofer enclosure, battery housing, or terminals.
- Everything from the Standard Rear Wall Panel

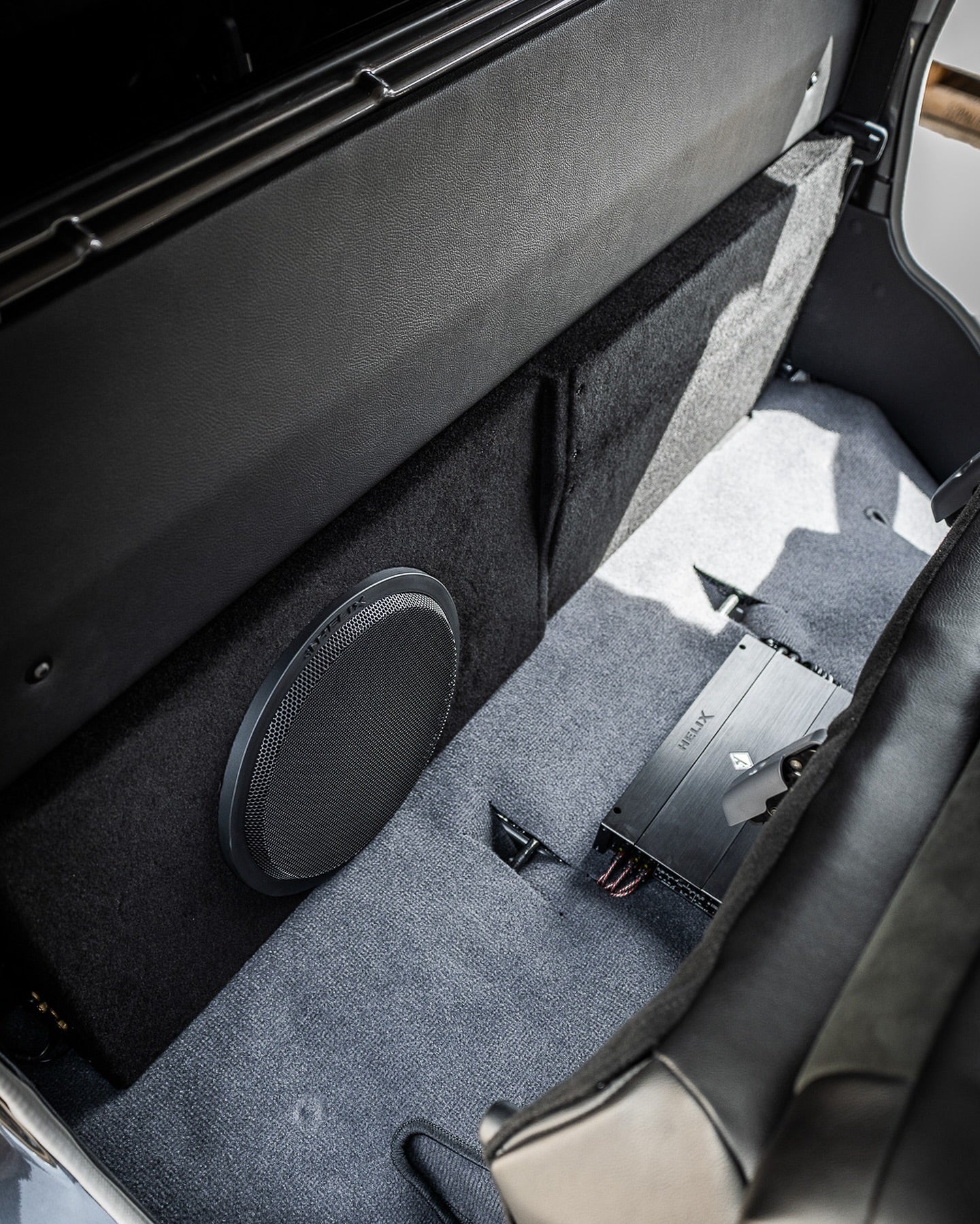

- Sealed subwoofer enclosure (approx. 17L) to suit Focal P25FSE
- Pre-cut mounting hole (approx. 235mm)
- Terminal board for sub-to-amp wiring
- Retains factory bottle jack, tool bag, and jack handles
No, the subwoofer and amplifier are sold separately. We recommend the Focal P25FSE for optimal fit and performance.
The enclosure is optimised for the listed subwoofers to ensure correct acoustic performance and fitment without major modifications.
- Everything from the Subwoofer Enclosure version
- Custom-fit sealed subwoofer enclosure (for select Focal/Helix models)
- Battery enclosure for a lithium battery
- Terminal board
- Installation hardware and instructions
The factory jack and toolkit must be relocated to accommodate the battery enclosure.
Yes, but it must be rotated upwards before folding forward for full access.
660mm high x 100mm deep x 1390mm long (deepest point at the sub enclosure).
Designed specifically for the Toyota 79 Series LandCruiser range.
These panels are precision-made for the 70 Series and not recommended for other models without custom work.
No, we can provide a Multidrive Technologies child restraint cutout.
Yes, it's compatible with our Rear Side Consoles (sold separately).
We can cut and mount provisions for your chosen subwoofer, but wiring installation is typically completed by your audio installer.
The standard enclosure suits the Focal P25FSE, while the premium version can be built for select Focal, Morel and Helix models.

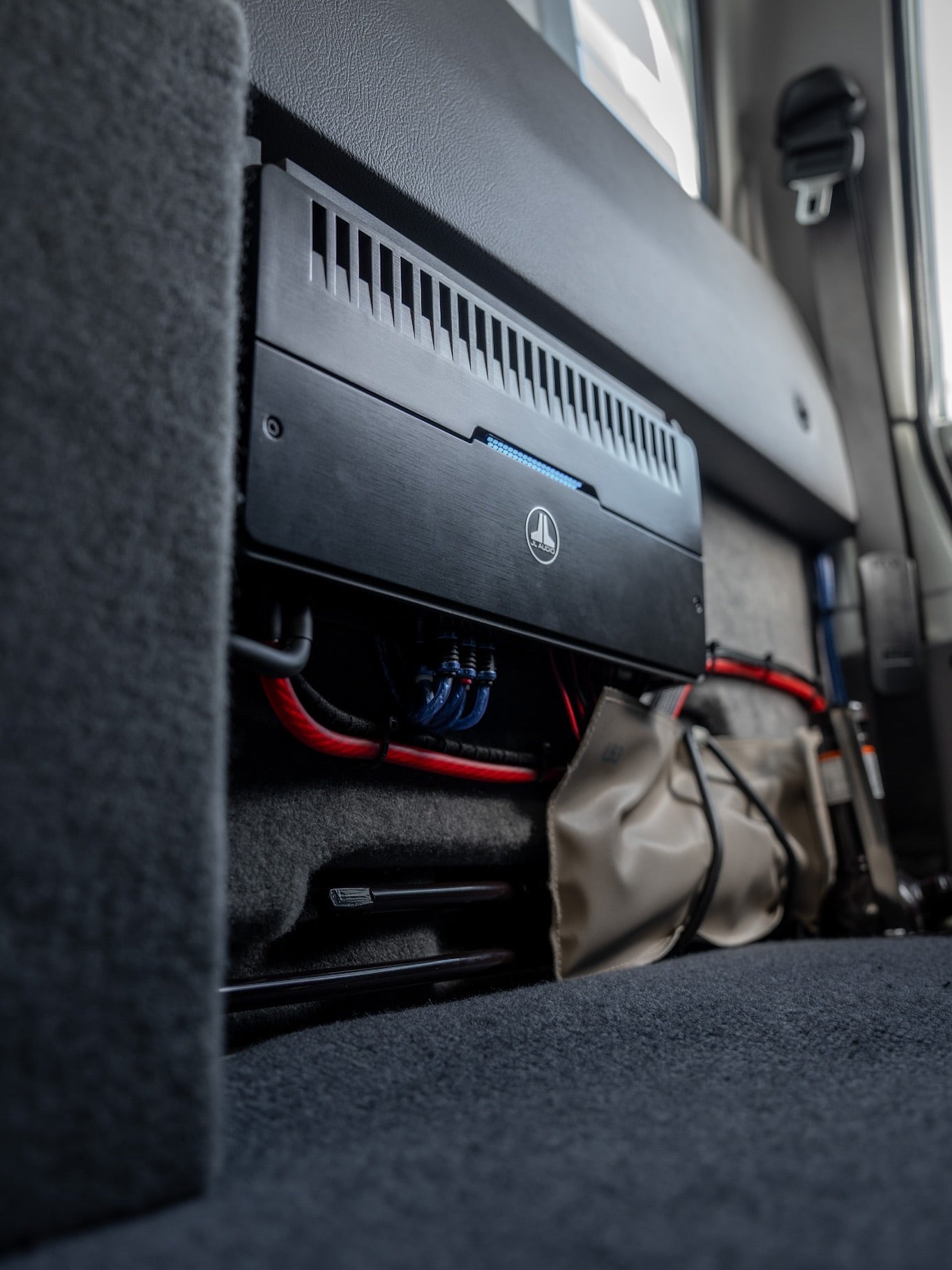

Yes, there is space to mount an amp alongside the subwoofer enclosure.
Only the Premium Rear Wall Panel includes a battery enclosure; other versions do not provide battery mounting space.
Many customers DIY fit using our instructions, but professional installation is recommended for panels with subwoofer or battery enclosures.
Around 1–2 hours for the standard version, up to 3–4 hours for the premium version with wiring and battery setup.
No cutting is required. Four 6mm nutserts must be installed into factory holes.
Wipe vinyl sections with a damp cloth and mild detergent; vacuum carpet sections. Avoid harsh chemicals.
