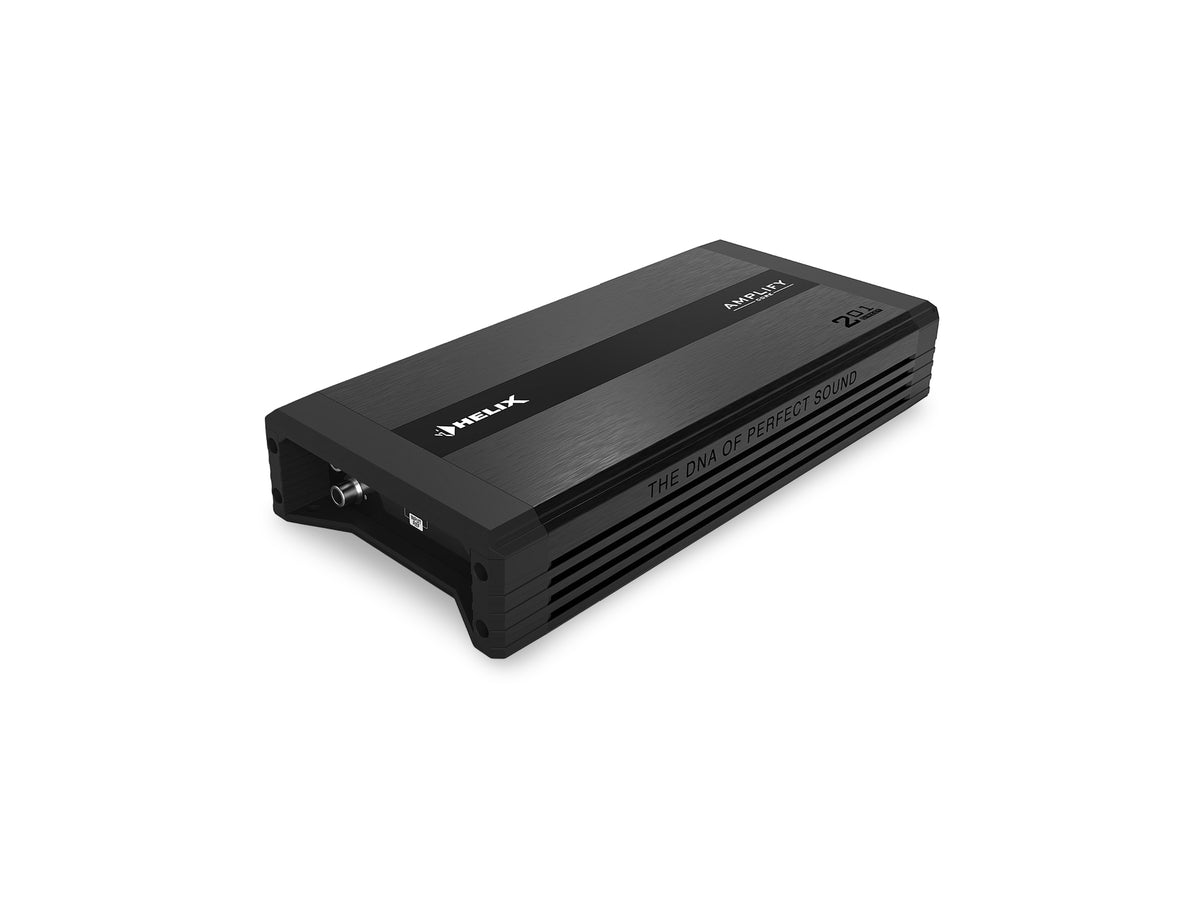

HELIX AMPLIFY 201 DIRECT – 1-Channel Mono Amplifier
Product Description
Deliver powerful, precise bass with the HELIX AMPLIFY 201 DIRECT 1-Channel Mono Amplifier, engineered for high-performance subwoofer amplification in a compact, efficient design.
Developed by German audio specialists Audiotec Fischer, the AMPLIFY 201 DIRECT combines advanced Class D amplifier technology with impressive power output, delivering controlled low-frequency performance without requiring a bulky installation.
Producing 250W RMS at 4 Ohms, 450W RMS at 2 Ohms and 750W RMS at 1 Ohm, this compact amplifier provides exceptional flexibility for a range of subwoofer configurations.
The integrated DirectDSP input is specifically designed for use with external digital signal processors, allowing the amplifier to receive a precisely tuned signal without additional onboard crossover filtering.
Its space-conscious design makes it an excellent choice for custom automotive audio installations where clean sound, efficiency and available mounting space are equally important.
Key Features
-
Compact 1-channel Class D mono amplifier
-
250W RMS at 4 Ohms
-
450W RMS at 2 Ohms
-
750W RMS at 1 Ohm
-
DirectDSP input for external digital signal processing
-
High-efficiency amplifier design
-
Stable with compatible 1 Ohm subwoofer loads
-
Integrated clipping indicator for gain adjustment
-
Start-stop compatible power supply
-
Compact design for discreet installation
-
Engineered by Audiotec Fischer, Germany
Technical Specifications
-
Brand: HELIX
-
Model: AMPLIFY 201 DIRECT
-
Amplifier Type: Mono / 1-Channel
-
Amplifier Class: D
-
RMS Power at 4 Ohms: 1 × 250W
-
RMS Power at 2 Ohms: 1 × 450W
-
RMS Power at 1 Ohm: 1 × 750W
-
Frequency Response: 10Hz – 250Hz
-
Total Harmonic Distortion: 0.02%
-
Signal-to-Noise Ratio: 113dB
-
Damping Factor: 200
Important Information
The AMPLIFY 201 DIRECT is designed primarily for audio systems incorporating an external DSP or signal processor.
This amplifier does not feature an adjustable onboard crossover. Appropriate signal processing and subwoofer filtering must be provided externally.
Professional installation is recommended to ensure correct wiring, gain adjustment, impedance matching and amplifier configuration.
Sold individually. Subwoofer, DSP, wiring kits and installation accessories are not included.
